7NPS-Shupreme 1

Conductor Composition
Super high purity 7N grade copper, high purity 5N copper, pure silver-plated OFC, high purity oxygen-free copper OFC.

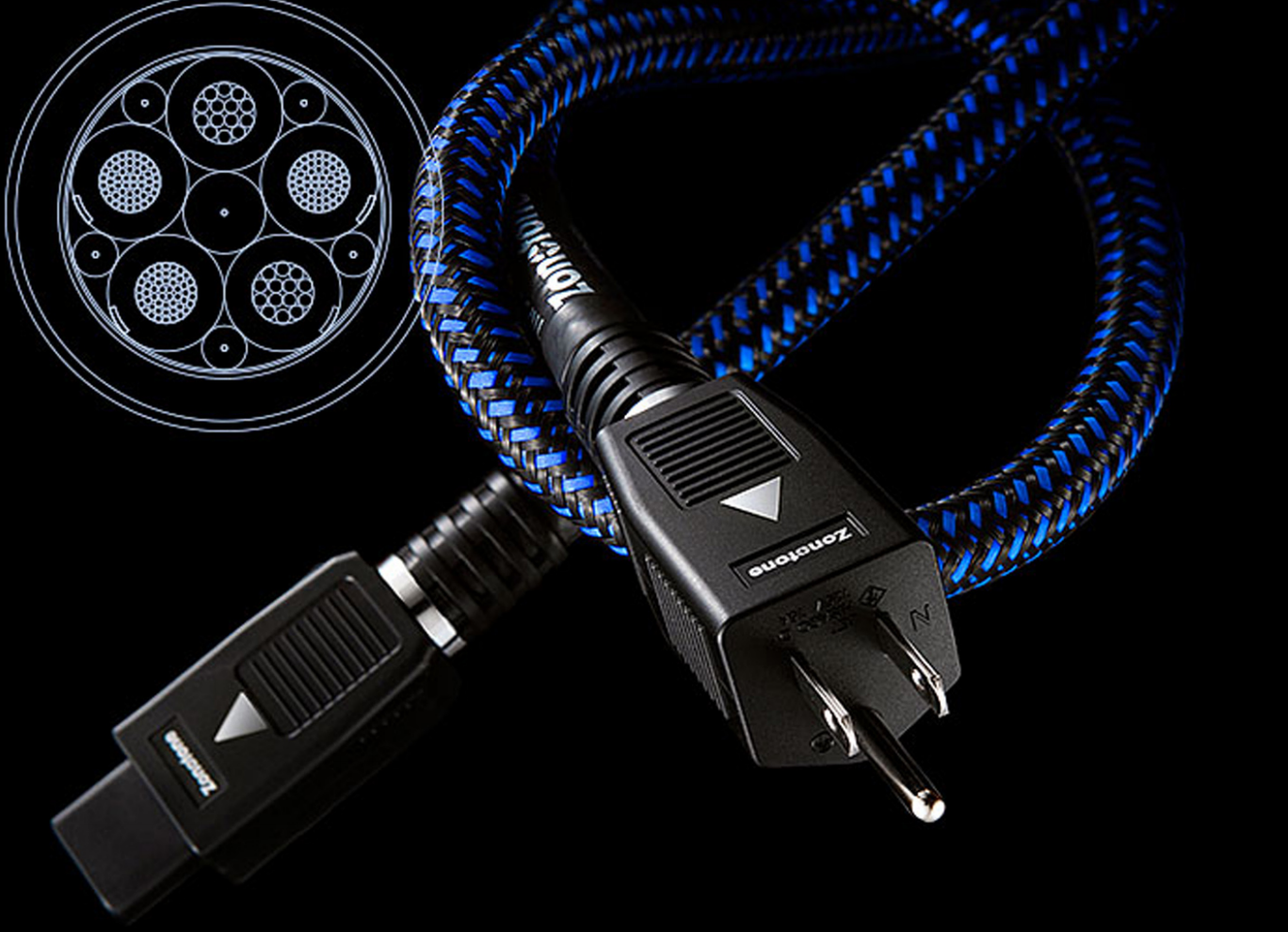

Structure
5-core structure. After mixing four high purity materials, they are combined into 2-core for hot end and cold end, forming a 5.5 square conductor, and adding a grounding wire to form a 3-core type (the grounding wire only uses high purity oxygen-free copper, 2.75 square).
Conductor Size
2.75 square ??? 5
Outer Sheath
Using high-performance blue and black nylon, polyester wire, after precise weaving, forming an original custom outer sheath, with very good vibration resistance, ensuring stable cable performance over a long time.
Sheath
PVC (complying with EU-RoHS standard).
Insulator
Heat-resistant PVC.
Shielding
Soft copper wire braided shielding.
Filler
Using 5 elastic vibration absorption materials between the conductors, with the central part using a thicker vibration absorption material.
Outer Diameter
16mm|?
Power Plug and Connector
Both the inlet and outlet use original integrated mold pressing, the contact part between the connecting wire and terminal uses durable high-performance rhodium plating, ensuring that the coating is not damaged with frequent insertion and extraction over a long time.
Withstand Voltage
1000 V/minute
Conductor Resistance
3.7|?/km
Insulation Resistance
5M|?/km
Rated Current
15A (125V) VCTF (complying with PSE standard)
Note: If the household power outlet is a 2P plug, this product does not include a 3P-2P adapter plug, and it needs to be purchased separately.
