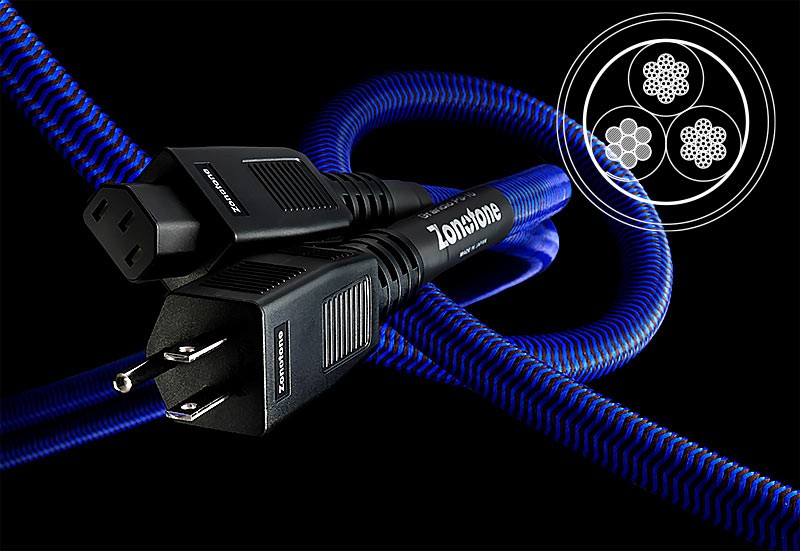

Grandio PS-10

Conductor Composition
Ultra-high purity 6NCu, high-performance pure copper HiFC, pure silver coated OFC, high purity oxygen-free copper OFC
Structure
Multi-strand structure composed of 4 types of mixed conductors, 3-core design (ground wire and green part only use high purity oxygen-free copper wire)
Conductor Size
5.5 mm2 ??? 3
Outer Sheath
Uses a two-tone blue and dark blue original special sheath woven with a solid braid, providing good vibration resistance. Effectively maintaining long-term stable cable performance.
Jacket
PVC (compliant with EU RoHS standards)
Insulator
Heat-resistant PVC
Shielding
Thick aluminum foil shielding
Filler
Natural cotton thread
Outer Diameter
16 mm|?
Power Plug and Connector
The plug and socket connectors use heavy-duty one-piece molds, emphasizing safety. The contact parts use a durable and high-performance rhodium plating, which will not be damaged by vigorous insertion and removal over long periods.
Voltage Withstanding
2000V/minute
Conductor Resistance
3.5|?/km
Insulation Resistance
5M|?/km
Rated Current Allowance
15A (125V) VCTF (compliant with PSE standards)
??? If the home power outlet is of the 2P type and does not come with a 3P-2P adapter, please purchase separately.
